Getting On With Things

I try to live one day at a time, but just lately it feels as if several days have hit me all at once.

However, progress has been made.  The oak frame for the choir manual will be ready next week, and I will have 43 Kimber Allen pistons next month. I gave serious consideration to Klann pistons, and the salesperson from Klann was extremely helpful.  I like the Klann piston style, which is essentially the European style, and somewhat cheaper than Kimber Allen.  In the end I settled for KA on the basis that it looks “more English”.  I think I would choose Klann if I were building the console from scratch, but since I’m building this organ into an existing English console, with English keyboards, and intend to have an English organ as my primary sample set, I feel that the KA style would be more harmonious.

the next job is to get the holes drilled in the piston rails, and hopefully next month I will be able to assemble the keyboard stack.  I’m getting to the point where I might actually start looking at midi interfaces.

Mia is off for surgery next week to remove the nasty mammary tumours.  Prognosis is excellent, but the operation is a big one.  Poor little puppy.  (She’s 7 years old and weighs 40kg, but she’s always a puppy to me.)

I ate’n’t dead.

Still here.  Meeting myself coming back at the moment, but hopefully will have time (and money!) to spend on more bits in March.

The Great Saga of the Pistons goes on.  Exploring another option, about which more later if it amounts to anything.

This isn’t a piston, either

Rumours of my demise have been greatly exaggerated.  I have, however, been even more busy this month than I predicted.  February isn’t looking much better either.

This photo has been eaten by a grue

The second switch arrived earlier this month.  It is similar, but superior, to the first, in that it has a silent action.  There are two drawbacks.  Firstly, the button part in the centre is somewhat smaller than is comfortable; and secondly, the shiny new metal looks entirely out of place on the old console.  The first problem could be addressed by using the 19mm switch instead of the 16mm one, but the second is obdurate.  Time for Plan C; the nice man from Norwich Organs is looking for 40 Kimber Allen pistons, which he believes may be in a box in the garage (along with half the clutter in the universe).

Meanwhile, the oak frame of the choir manual has the broken-off end of a screw in it.  I suggested that, since it would be completely covered by the frame of the great manual, I could simply drill another hole for a fixing screw.  This was met with a shocked and mildly outraged, “But I would know it was there!”  Not willing to argue with a craftsman, I rendered up the frame for a quick repair job.

Hopefully I will be able to do something on the project in February.  Once I have confirmation that I have the requisite amount of Kimber Allen pistons, I can at least send the piston rails off for drilling.  Beyond that, I hope that I can start buying some MIDI components in March.

Dogs are doing very well, and have become fast friends.  They now go everywhere joined at the hip, and if one of them has to go out alone for a trip to the vet, the other one sits in the middle of the lounge and sulks.

The keyboard stack

Here it is, not so much assembled as, erm, stacked. I have cleaned up the contacts, removed a dozen small rust patches from the nickel-plated key cores and anointed the cleaned areas with oil (to limit any further rusting).  Eagle-eyed viewers will notice that the keyboard frames are upside down.  The reason for this is shut up.
This photo has been eaten by a grue

I have a very busy January ahead, so I will probably not be doing much on this project until February.  I am still awaiting the arrival of the second switch sample, which I am hoping will be silent.  If it isn’t, I will revert to the tried-and-trusted Kimber Allen pistons, of which my friendly organ engineer has a stash.  In either case, the next stage will be to drill the piston rails for the extra holes and reassemble the frames.  They keyboards are already matrix wired, so in theory (hah!) it should just be a case of replacing the plug on the ribbon cable.

I woke up this morning to find the dogs curled around each other, fast asleep.  I think we have reached doggy equilibrium.

Keyboards arrived

I picked up a three-manual stack from Mr Norwich Organs today. They are Norwich Organs originals, about 20 years old, and in lovely solid oak frames. They are in good condition, and need nothing more than a good clean to bring them back into use. Although the keys are plastic, they are well-made and have a pleasing action – and at £100 a pop, I think have got myself a bargain. They are currently in bits all over the conservatory, so I’ll post a photo of them when they are properly assembled. In the meantime, here is a photo of the contacts mid-clean. The glass brush scrapes off the tarnish in no time, as you can see (clean contacts on left of image, tarnished contacts on right). You can also see the nasty glass fibres that break of from the brush during use. I cleaned the keyboards over newspaper, and also gave them a good brushing over with a very powerful vacuum cleaner to remove the fibres. Having tiny pieces of glass stuck in your fingers is not anyone’s idea of fun. Or at least, if it is someone’s idea of fun then I’d rather not know about it.

keyboard contacts

In other news, the new dog is settling in well so far.  Early days, though.

This is not a piston

I thought it might have the piston nature, but I was mistaken.  It looks lovely, especially when illuminated but, despite being advertised as a momentary switch, there is a loud click when the button is depressed.  It sounds almost as if it is a latching switch with the latch removed.  Disappointing.

This photo has been eaten by a grue

Never mind.  I’ve another style on order, which should arrive some time after Christmas.  If that one also fails to meet my exacting standards, I’ll fall back on the tried-and-tested Kimber Allen piston.

I was going to do some work on the console on my week off (starting next Friday – huzzah!), but I’m trialling a new dog to see if she will settle in with my current dog.  She’s a rescue who has had a moderately horrible life, and needs somewhere warm and safe with a big sister.  The prospective big sister met her at the kennels yesterday and they got on remarkably well.  Next Friday is the big test to see if they maintain that bonhomie (bonnefemmie?) at home.  My house may be in ruins before the week is over.

And now the work begins…

Just a preamble to an actual, meaningful post, and for the sake of completeness, I purchased some goodies:

    \t

  • Black & Decker workbench (had one years ago, and this was a good excuse to buy another): £80
  • \t

  • Glass fibre brush (nasty thing to use, but cleans contacts up nicely): £3
  • \t

  • 12V power supply: £8

I will be picking up the three-manual stack in a few days.  Hope it fits…

A brief glimpse at the innards

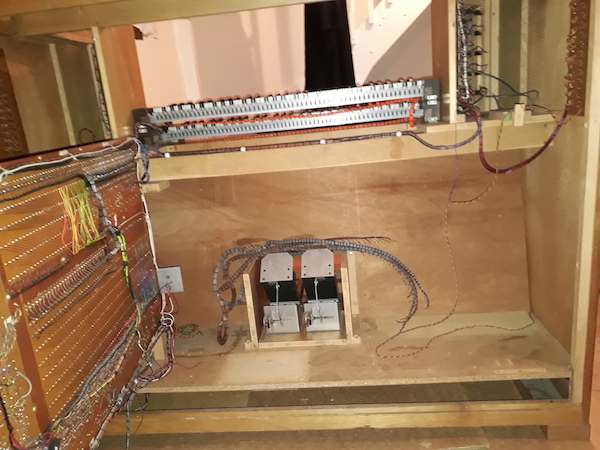

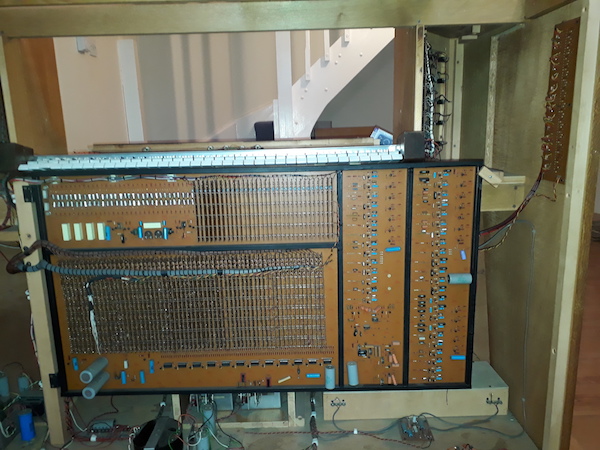

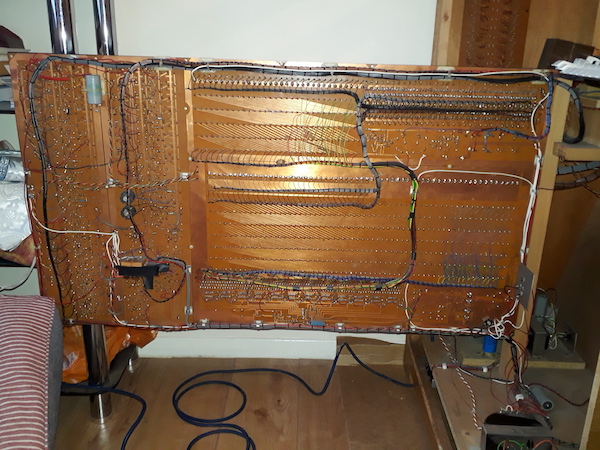

Wyvern Organs have a reputation for quality that is well-deserved.  This instrument is in the region of 45 years old, and the fact that it is still working (apart from some problems with the amplification circuitry, probably caused by someone tampering with it) is testament to the skill of the builders.  Alas, time marches on and everything must go, to make room for the Shiny!  New!  Future!  (which is both futuristic, new and shiny).  It is not all going to waste, however, as a local organ engineer has snaffled the parts in case they come in handy for a repair job.  Here are some photos of the analogue organ, taken before its excision.

This photo has been eaten by a grueThis photo has been eaten by a grue This photo has been eaten by a grue

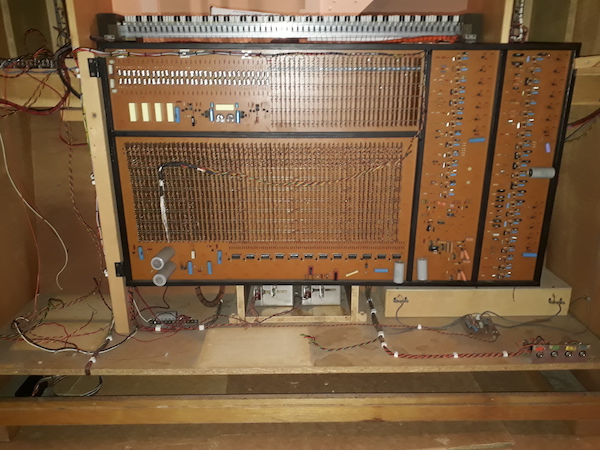

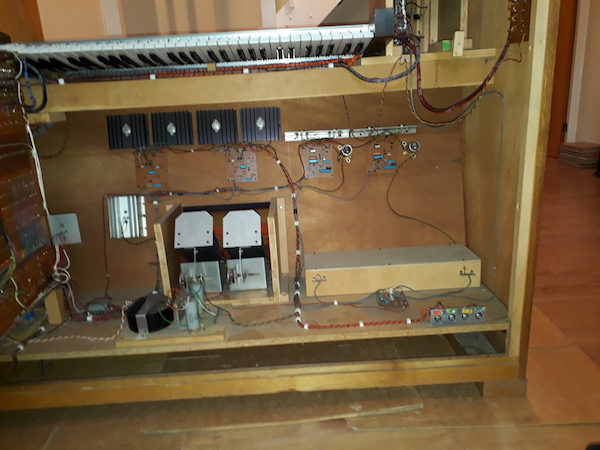

And a few of the surgery itself:

This photo has been eaten by a grue This photo has been eaten by a grue This photo has been eaten by a grue

Note that I have also removed the keyboards.  There is space in the console for three manuals, and I know a very obliging organ engineer with a spare three-manual stack.  More on that in a later post, but for now gaze in wonder at the carcass of the once beautiful console.  Will it rise, Phoenix-like, from the ashes?  Only time will tell.

The Odyssey Begins

[FX/Grams: Journey of the Sorcerer]

So there I was, nose deep in a mug of tea and scanning for interesting organ bits on eBay, when this pops up:

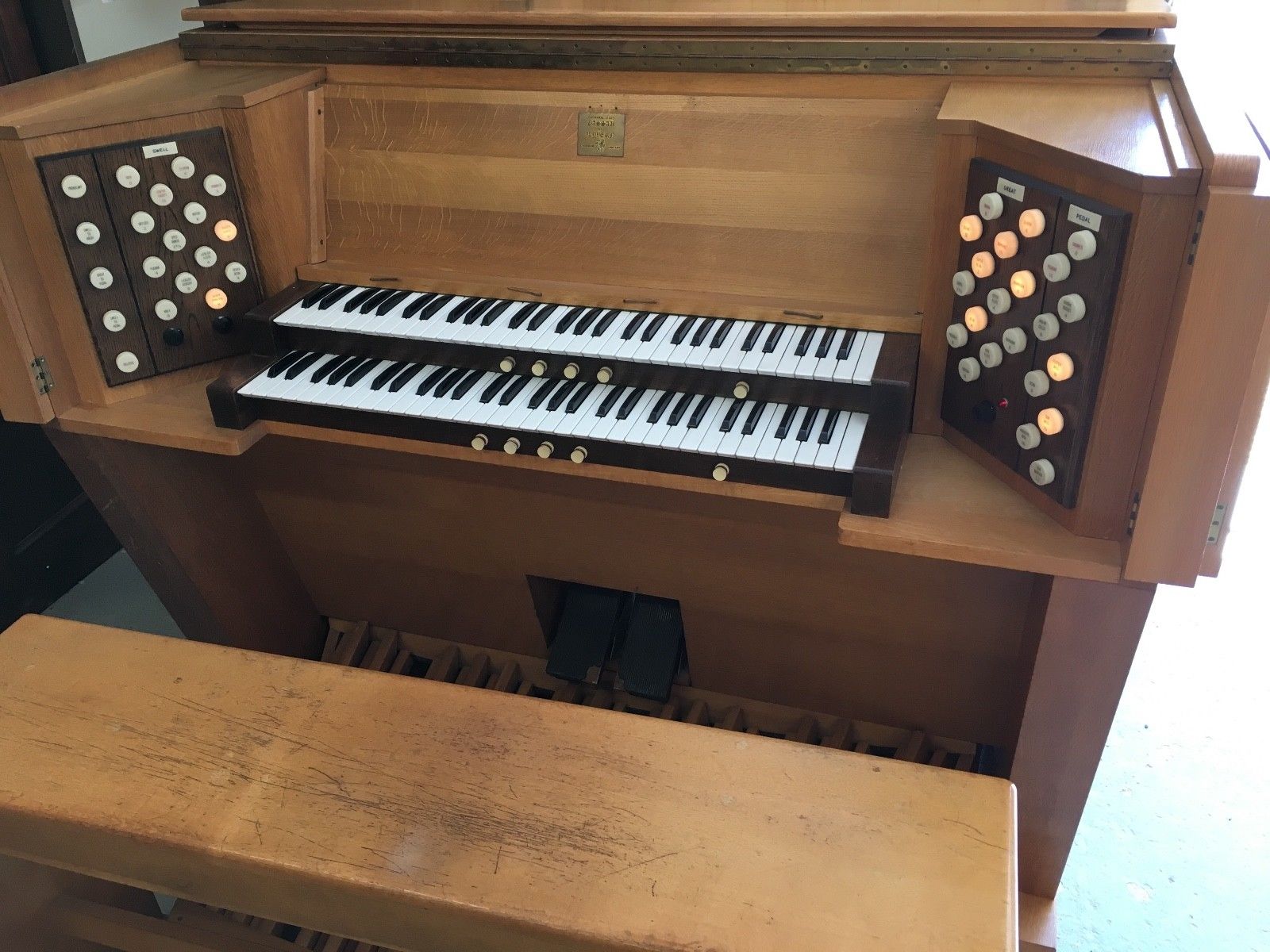

This photo has been eaten by a grue

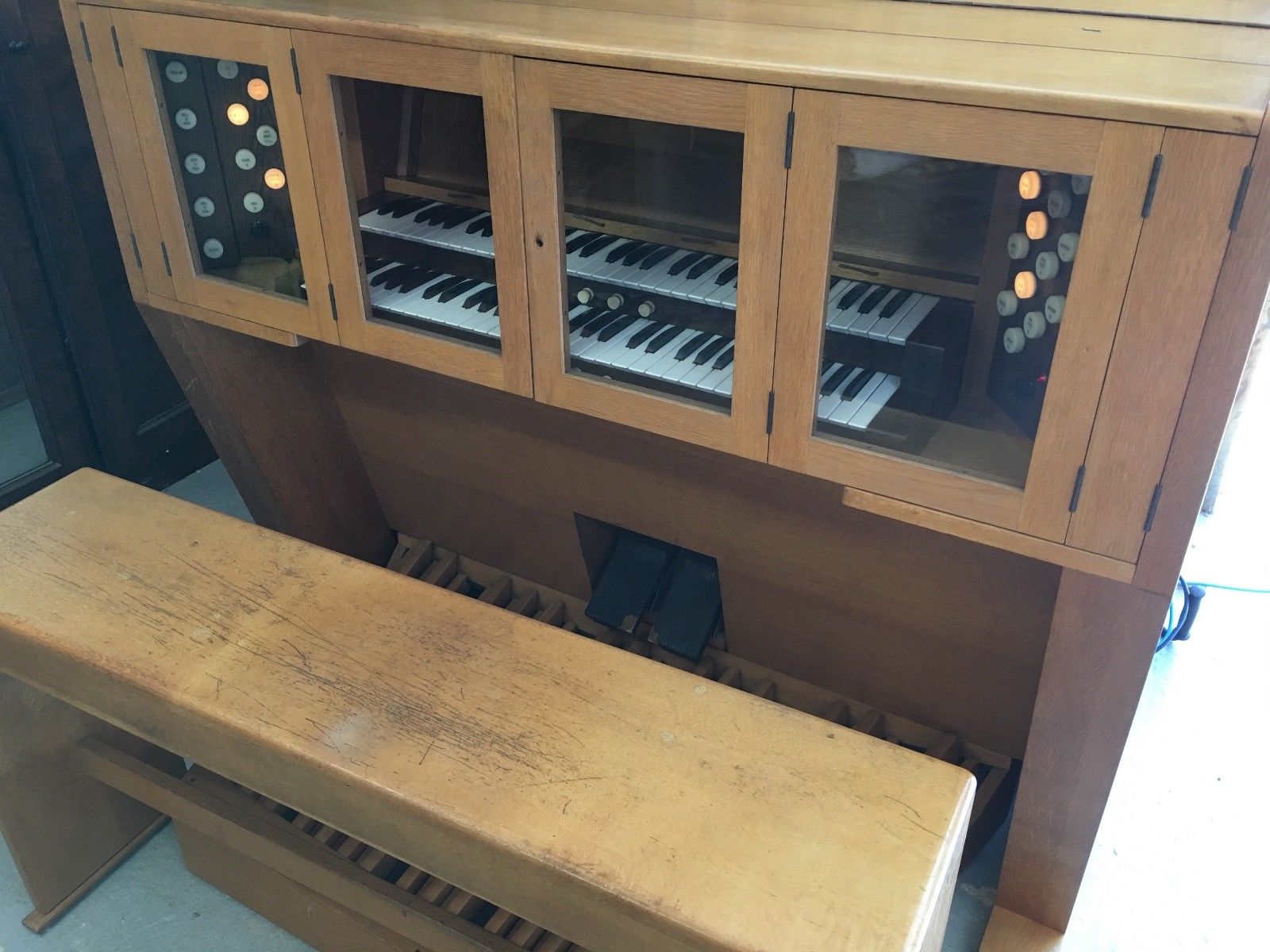

This little beauty is a Wyvern analogue organ, model ‘Passau’.  Is it not lovely?  Here is another photo:

This photo has been eaten by a grue

This is how it was advertised, with a starting price of £70:

Wyvern Passau organ. Two full compass keyboards, 32 note radial concave pedalboard and full length bench. The organ is listed as for parts as it is about 40 or more years old and also requires external speakers to work (there are 4 outputs). However the luminous touch stops (push to switch on and push again to cancel) work. As this is an old analogue organ it has no midi but has a handsome oak console with folding glass doors.

It is heavy and will require a van to collect but we can help to load. Dimensions: W 1530mm H 1270mm D 770mm D inc pedals 1140.

Well, how could I resist?  Pausing only to check my wallet for the requisite quantity of farthings, I placed a bid and hoped.  In the end, I picked it up for only £122, which was well within my budget.  Having paid up, I negotiated a collection date with the seller, and then negotiated the good offices of Andrew, a friend from church.  Andrew is somewhat older than I am, but I am somewhat less fit than he is, so that balanced out.   “Come along for a trip to Sussex,” I said.  “It’ll be fun,” I said.  “We’ll be back just after tea,” I said.  Oh how we laughed.  Eventually.

The trip down to Sussex from North Norfolk wasn’t too bad, but I was reminded of the old saying, “If you want to get anywhere from Norfolk, start from somewhere else.”  Norfolk is a sleepy little county and we aren’t too fond of roads that travel more than a few yards in a straight line.  Still, we made good time and only hit a small amount of congestion on the M25.  Arriving at the seller’s house, I discovered that the instrument was being sold by Mr Wyvern Organs himself, who couldn’t bring himself to throw it away.  Although he didn’t remember (not that he should), this was the same man who sold me my old Toccata III back in the early 2000s.  Although Wyvern no longer keep a shop, they are very much in business.

The organ was quickly loaded onto the van and we began the return journey.  Progress was good at first, but then we spent several hours in slow-to-stationary traffic on the M25, and it just got worse and worse.  We arrived back at my house after 10pm and then began the task of unloading.  This was rather challenging as the console appeared to have gained several hundredweight during the journey north.  It took us until midnight to get it into the house, and required the removal of the front door (cue Bernard Cribbins, “‘Right,’ said Fred”) since the console was about a quarter of an inch too wide to go through.  Here it is, in its temporary location in the middle of my lounge (minus pedalboard and glass doors):

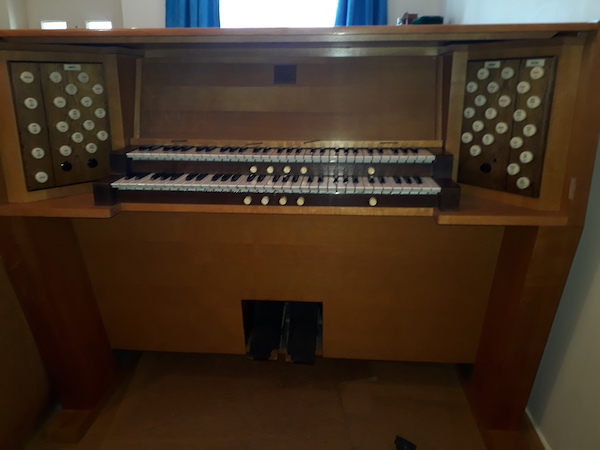

This photo has been eaten by a grue

Total cost including purchase, van hire, diesel and coffee and lunch for Andrew (for whose help I am deeply grateful): £275

Well hello there.

I’ve been an organist for over thirty years.  Excuse me, I have to go and lie down now.

*recovers from shock of typing that*

Ahem.  Anyway.  Five years ago, in part due to several house moves and relocating from one end of the country to the other, I was obliged to say goodbye to my delightful Wyvern Toccata III digital organ, which had given me many happy hours of entertainment, and didn’t upset the neighbours too much.  Fast forward to 2017, and my lifestyle has settled down to the point where I have the time and energy to devote to practice (all Bach, all the time).  My goodness, how time has moved on!  After looking at several digital instruments, wincing at the price and slinking sadly away, I came to the conclusion that I wouldn’t be able to afford a new organ, so perhaps something would show up on eBay.

It was then that I discovered Hauptwerk.  If you have been living in a cave (or, like me, Norfolk) and have not heard of Hauptwerk, it a virtual organ application which runs on the Mac as well as Windows, connects to a MIDI keyboard stack, and turns your lounge into Salisbury Cathedral (only, without tourists interrupting you to take pictures when you’re trying to nail that little Krebs passage which keeps tying your fingers in knots, and asking you to play Widor’s Toccata).  When you are bored with Salisbury, there are dozens of instruments which have been professionally and extensively sampled, ranging from small parish churches to the great cathedral and concert organs of Europe and the US.  I also learned that a friend had built a Hauptwerk console out of an elderly electronic organ, so off I toddled to have a twiddle.

I was hooked.

Dear Reader, I now recount the curious tale of how I picked up an old analogue console, and document its transformation into a thing of beauty and delight.  Unless you’ve read the posts backwards.  In which case, I would like to reassure  you that there are no hidden messages to be revealed by so doing, and you can stop now.
